JUARISTI TX3S

JUARISTI TX3S

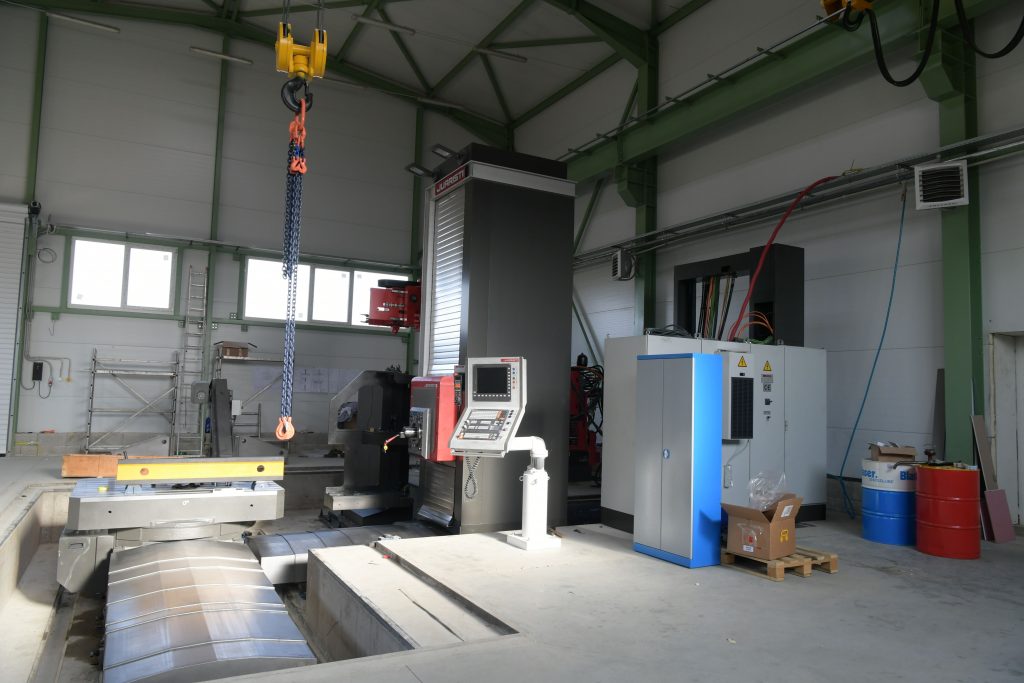

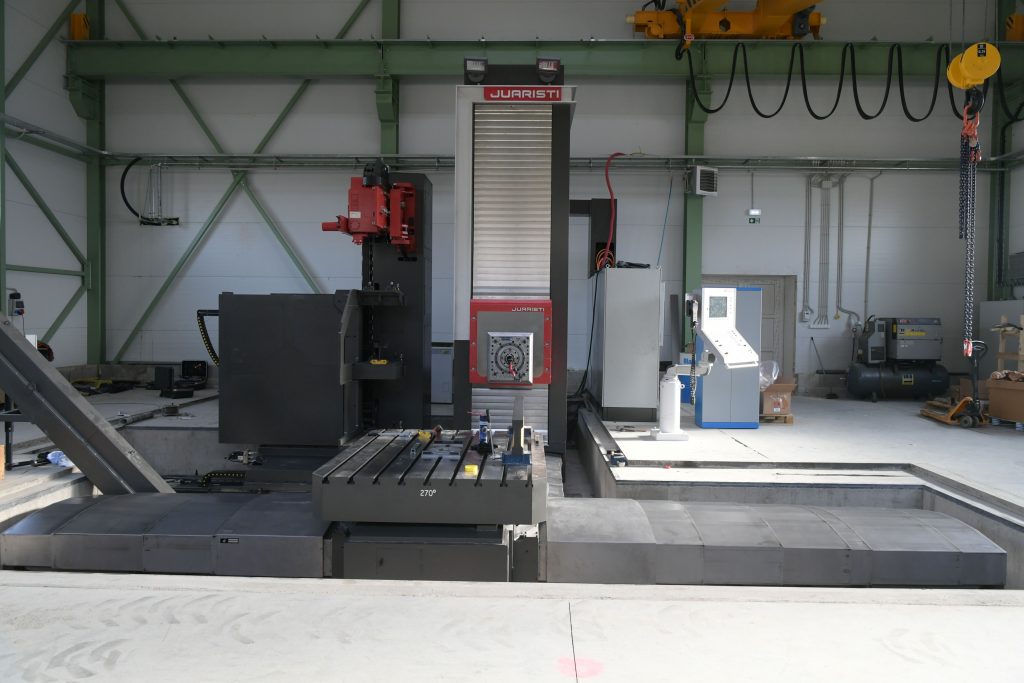

High-performance horizontal boring and milling center.

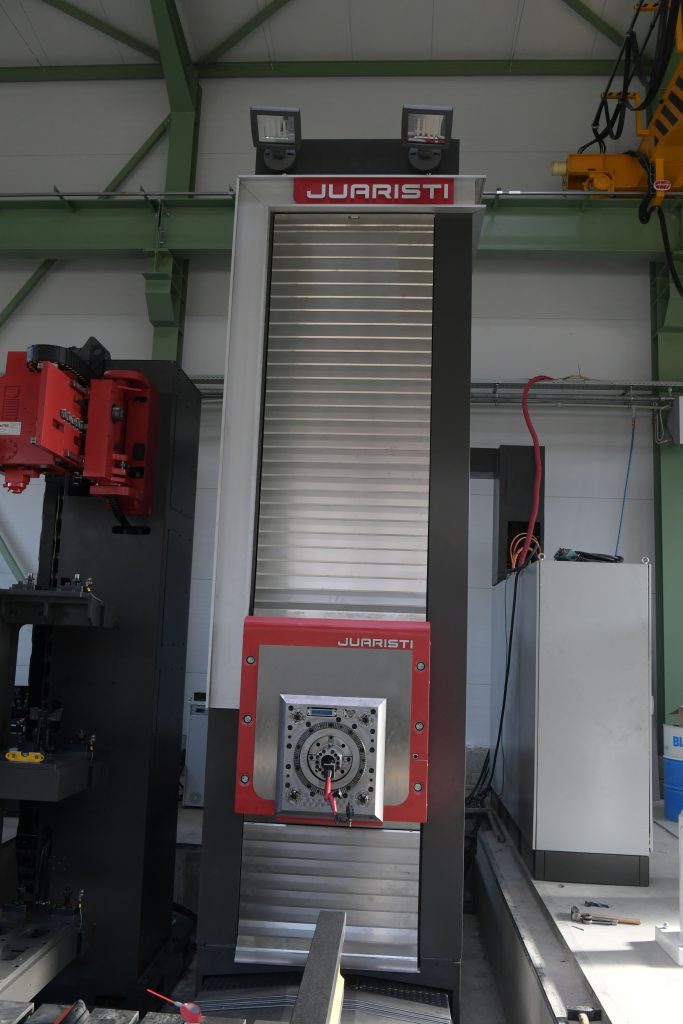

  • Column spindle
  • Heidenhein measuring systems
  • Heidenhein motors and drives
  • Heidenhein control system iTNC530 HSCI 15' with the handweel HR520 FS


OTHER IMPORTANT FEATURES


  • Chip extractor for X travel = 4000 mm
  • Automatic tool changer ATC60, max. Ø250x600, 35kg
  • Standard operator protection plus ATC protection
  • External and internal tool cooling 3bar / 40l / min-20bar / 20l / min

BASIC TECHNICAL PARAMETRES


TX3S - MGX20

High performance horizontal boring and milling center - Column spindle

Vreteno-TX3S- Ø130 - 37kW-3500min-1

Diameter of working spindle - 130 mm

Spindle speed - 3500 rpm

Spindle power - 37 kW

Torque - 1646 Nm

TOOL CONE

DIN 69871 and pin connector DIN 69872. ISO

CONE TYPE

AD for external and internal cooling

Lateral travel (X)

4000 mm

Vertical travel (Y)

2500 mm

COLUMN LONGITUDINAL TRAVEL (Z)

2000 mm

SPINDLE TRAVEL (W)

800 mm

MGX20 TURNTABLE

Table load - Table load max. 20,000 kg

Turntable (B) – 1600 x 2000mm
